Function Block Development Guidelines

For the Japanese site, please refer to here.

Purpose and positioning of this document

Purpose

This document provides a basic specification of a implementation sample and instructions for building a function block for the developer of the function block.

Function block development flow

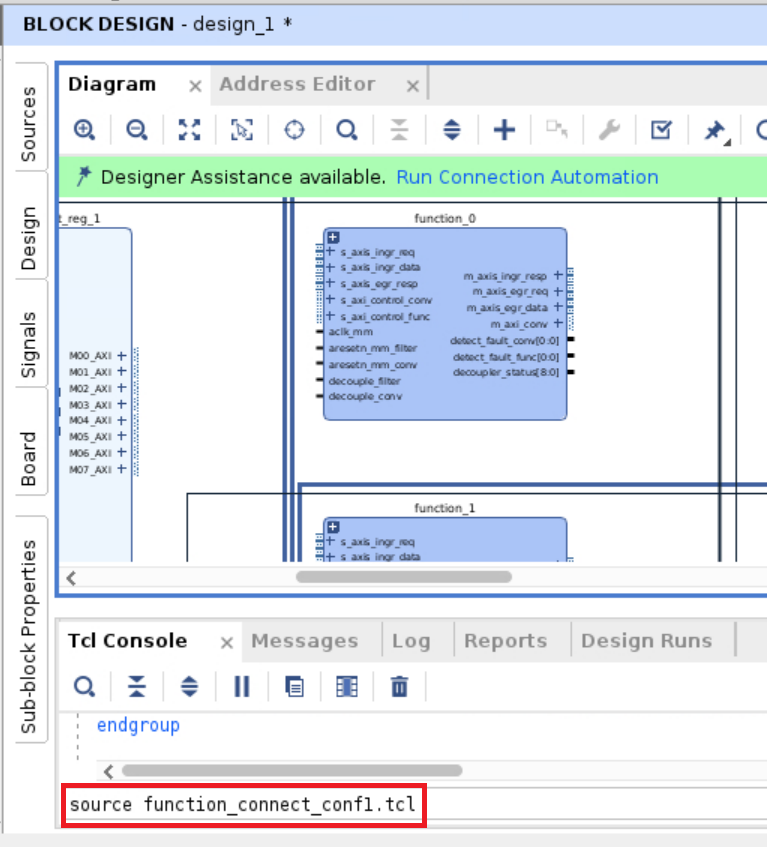

1. Designs and implements function blocks based on the Function Block Interface specification described below.

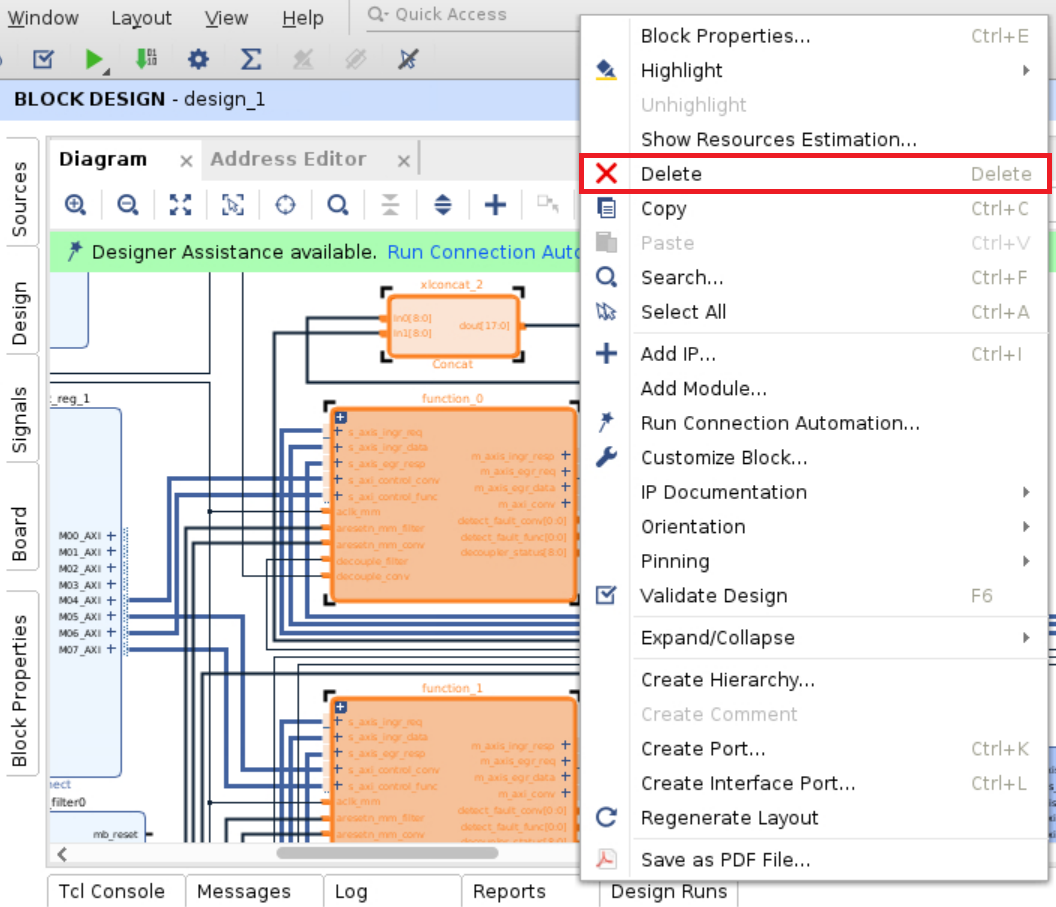

2. Change the build script, etc. and replace the existing function block in the implementation sample with the new function block.

3. Perform an FPGA Bitstream building.

FPGA Card Specifications

The specifications of the FPGA card used when the implementation sample was designed are shown below. See Device Vendor Sites for more information.

Item	Description
FPGA used	Xilinx Ultrascale+ XCU250-FIGD2104-2L-e
Installed Board	Alveo U250 (PCI card)
Operating frequency	50MHz / 100MHz / 150MHz / 200MHz / 250MHz / 300MHz
External interface	PCIe Gen3 x16 / QSFP28 / DDR4 / UART / GPIO
Input clock	100MHz / 161MHz / 300MHz
Configuration	Flash ROM Write, USB Write, PCI Write (Tandem PCIe)

Configuring the Implementation Sample

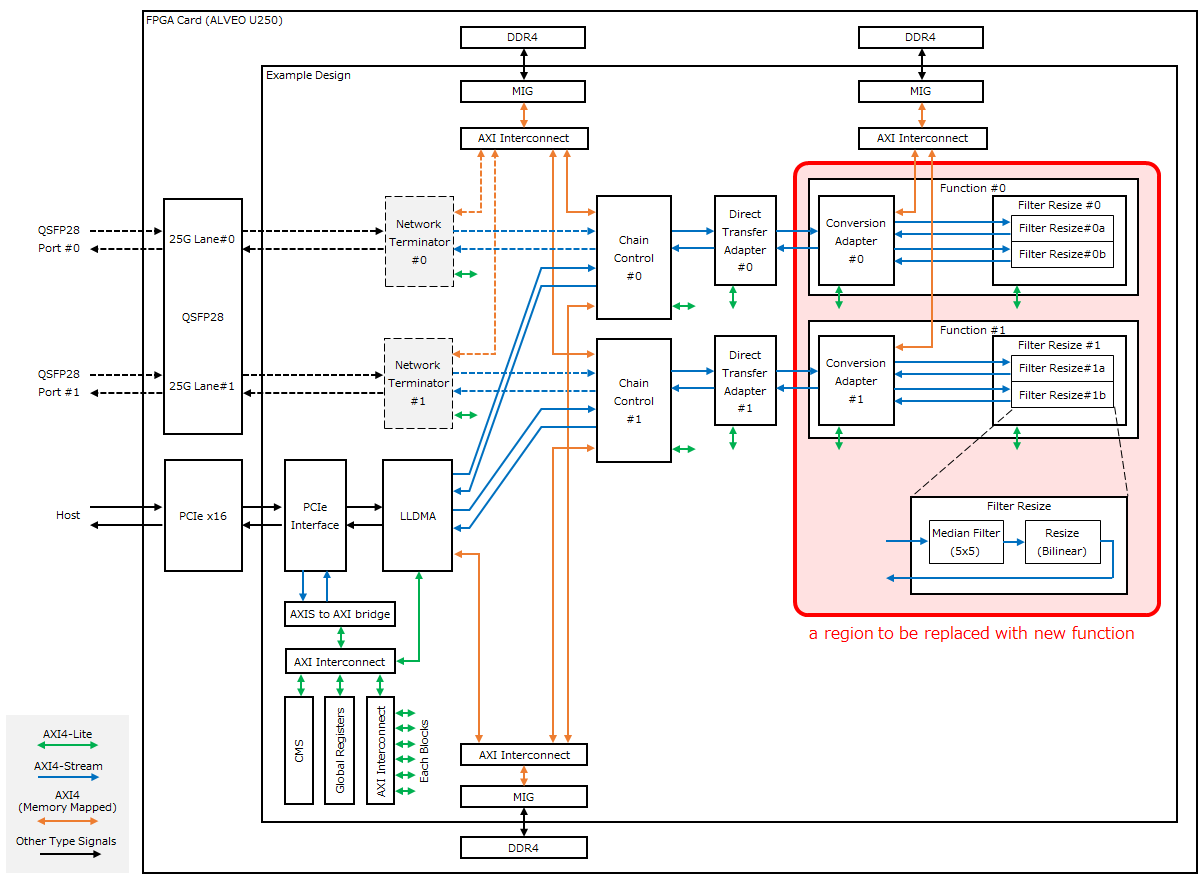

Shows the block configuration for a implementation sample. The red hatched area is the area to be replaced with a new function block.

Chain Control

This provides a function chain data transfer function. It performs association (ID conversion) and data transfer between logical connection (connection) of external IF and logical connection (function channel) in FPGA.

LLDMA (Low-Latency direct Device Memory Access)

In addition to the transfer between the host and the FPGA card, it provides the ability to transfer data directly between the FPGA cards without going through the CPU processing of the host (D2D).

Network Terminator

Provides external interface functions via Ethernet.

The network termination function is not included in the implementation sample. For information about this function, refer to “About the network termination function” in the README.

Direct Transfer Adapter

Bypasses the function block and allows direct transfer from ingress to egress of chain control.

Function (Conversion Adapter/Filter Resize)

The implementation sample provides image processing functionality. It consists of a conversion adapter block and a filter Resize block.

• Conversion adapter block, which buffers data frames and distributes image processing tasks.

• Filter Resize Block: Enables parallel execution of distributed image processing tasks (5x5 median filter and resizing).

Other Blocks

Block name	Description
PCIe Interface	Hard IP for terminating PCI Express x16 bus.
MIG	Memory Interface Generator. Provides an interface to access DDR SDRAM on ALVEO cards.
AXIS to AXI bridge	Translates register access from PCI Express from AXI4-Stream to the AXI4-Lite protocol used internally by the FPGA.
CMS	Card Management System. Obtain power and temperature information for the ALVEO card.
Global Registers	Provides a set of registers for controlling and monitoring the entire implementation sample.

Clock/Reset type

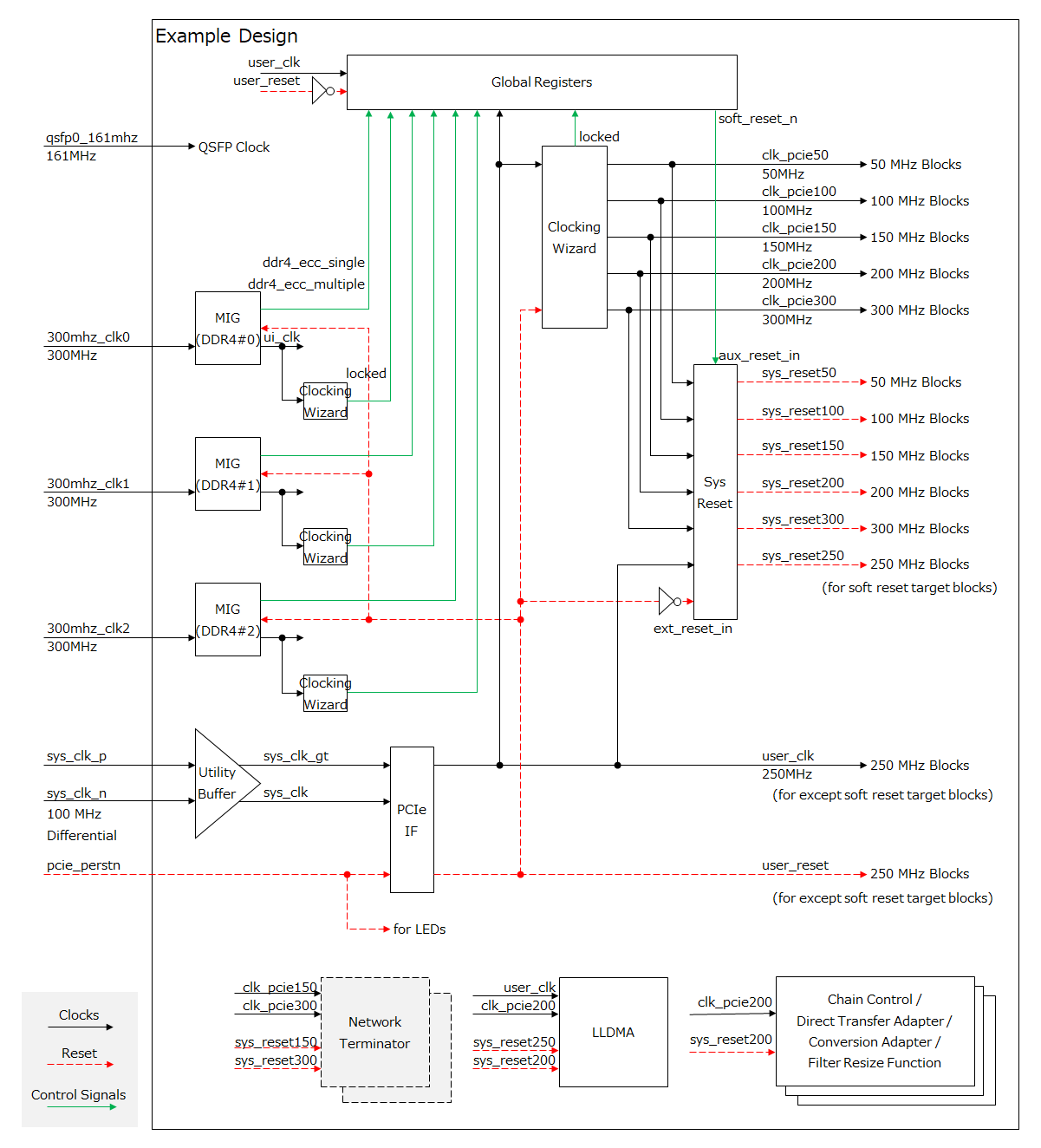

The Clock/Reset for the implementation sample is shown below.

Function Block Interface Specification

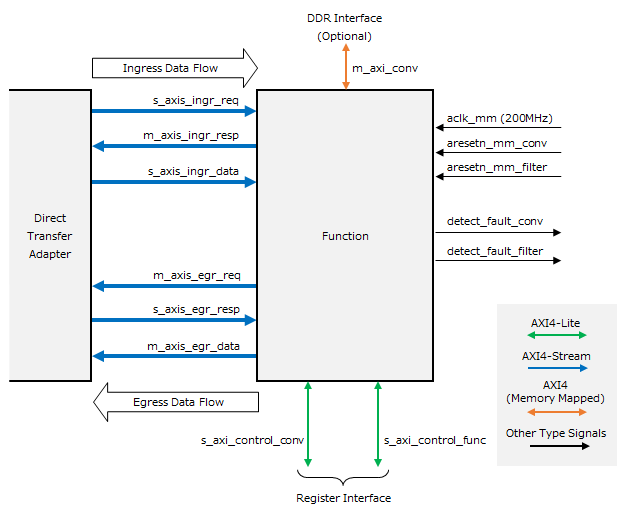

Following are the interface specifications that a function block must meet:

Signal Name/Bus Name	I/O Type [1]	Width	Connection-Destination Block	Function Description	Necessity
aclk_mm	input	1	Clocking Wizard	200 MHz clock	Required
aresetn_mm_filter	input	1	Processor System Reset	Subblock 0 Reset (aclk_mm synchronous, negative logic)	Required
aresetn_mm_conv	input	1	Processor System Reset	Subblock 1 Reset (aclk_mm synchronous, negative logic)
s_axis_ingr_req	AXIS Slave	64	Direct Transfer Adapter	Ingress Transfer Request	Required
m_axis_ingr_resp	AXIS Master	64	Direct Transfer Adapter	Ingress Transfer Response	Required
s_axis_ingr_data	AXIS Slave	512	Direct Transfer Adapter	Ingress Transfer Data Stream	Required
m_axis_egr_req	AXIS Master	64	Direct Transfer Adapter	Egress Transfer Request	Required
s_axis_egr_resp	AXIS Slave	64	Direct Transfer Adapter	Egress Forward Response	Required
m_axis_egr_data	AXIS Master	512	Direct Transfer Adapter	Egress transport data stream	Required
m_axi_conv	AXI4 Master	512	AXI Interconnect	DDR Access Bus
s_axi_control_func	AXIL Slave	32	AXI Interconnect	Subblock 0 Register Access Bus	Required
s_axi_control_conv	AXIL Slave	32	AXI Interconnect	Subblock 1 Register Access Bus
detect_fault_filter	output	1	global register	Subblock 0 Failure Detection Notification (positive logic, level)	Required
detect_fault_conv	output	1	global register	Subblock 1 Failure Detection Notification (positive logic, level)

[1]

AXIS : AXI4-Stream / AXIL : AXI4-Lite

Clock input (aclk_mm)

The sample implementation assumes a 200 MHz clock ( clk_pcie200) generated by the Clocking Wizard IP is connected and all other interfaces (Reset, AXI Bus, Failure Detection Notification) are synchronized to it.

Reset input (aresetn_mm_filter/conv)

In the implementation sample, two reset inputs are provided for resetting the function block. This is because the implementation sample includes two subblocks within the function block so that they can be reset independently.

If a function block consists of only one block, the reset for the second block ( aresetn_mm_conv) can be disconnected.

Ingress transport interface (axis_ingr_req/resp/data)

Interface for data frame transfer on the ingress side. Consists of three AXI4-Stream interfaces (req/resp/data). The protocol is will explain later.

Egress forwarding interface (axis_egr_req/resp/data)

Interface for data frame transfer on egress side. Consists of three AXI4-Stream interfaces (req/resp/data). The protocol is will explain later.

DDR Access Interface (m_axi_conv)

AXI4 (Memory Mapped) interface for accessing DDR4 SDRAM on an ALVEO card. The implementation sample uses it for frame buffering on the ingress side. If buffering to DDR is not required by the function block function, it can be disconnected.

Register access interface (s_axi_control_func/conv)

This is a register access interface for controlling function blocks. The implementation sample contains two subblocks within a function block, so an interface is provided for each.

If the function block contains only one block, the interface for the second block ( s_axi_control_conv) can be disconnected.

Failure Detection Notification (detect_fault_filter/conv)

This interface is used to notify the global register of a failure detected in a function block. The implementation sample contains two subblocks within a block, so an interface is provided for each.

Read Clear : This is a positive logic level signal that outputs the result of OR-combining all bits of the implemented failure detection register.

If the function block contains only one block, the interface for the second block ( detect_fault_conv) can be zero fixed.

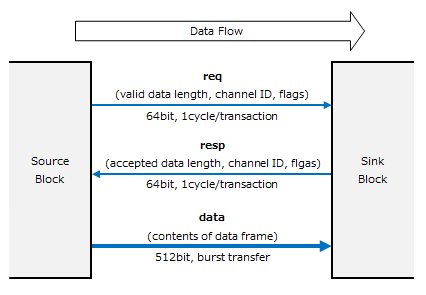

Protocol for transferring data between blocks

Indicates the interface between blocks used to transfer data frames. This interface consists of three AXI4-Streams. The sender block is the Source Block, and the receiver block is the Sink Block. For an ingress forwarding interface, the direct-forward adapter block is the Source Block and the function block is the Sink Block; for an egress forwarding interface, the function block is the Source Block and the direct-forward adapter block is the Sink Block.

Relationship between DataFrames and Transactions

A dataframe is the entire data input and output by a single computing task. For example, in an image processing task, a data frame is expected to be an entire image frame.

When transferring data between blocks, transferring large data frames in bulk can occupy the bus for a long time and cause deadlocks between function channels. Therefore, this protocol divides data frames into transactions of up to 32 kByte and transfers them.

The transaction that includes the beginning of the data frame is given the Start of Frame (SOF) flag and information about the total length of the data frame. Transactions that include the end of a data frame are given the End of Frame (EOF) flag.

You cannot mix data frames in a single transaction.

req / resp

This is a 64 bit wide control bus for determining the data length of the transaction to be transferred between Source and Sink. Transfers the following structure in one cycle per transaction:

Field Name	Bit Range	Description	Range
frame_length	[31:0]	Data Frame Length (In bytes, valid only for SOF)	1～4,294,967,295
channel	[40:32]	Function Channel ID	0～511 [2]
sof	[41]	SOF Flag (When 1, the beginning of the transaction data is the beginning of the data frame.)
eof	[42]	EOF flag (When 1, the end of the transaction data is the end of the data frame.)
direct	[43]	Direct transfer indication bit. Not used in function blocks.
(reserved)	[47:44]	Reserved
burst_length	[63:48]	Transaction data length (bytes, up to 32768 Bytes)	0～32,768 [3]

[2]

The maximum range allowed on the protocol. The actual possible values depend on the function block.

[3]

1 ≦ req.burst_length ≦ 32768, 0 ≦ resp.burst_length ≦ req.burst_length

The burst_length in req indicates the length of transaction data that the Source Block can transfer. The burst_length in resp indicates the length of transaction data that can be received by the Sink Block. The burst_length of resp must not exceed the burst_length of req. If the sink block cannot receive a single byte of transaction data (for example, because the buffer is full), you can set the burst_length of resp to 0.

data

This is a 512 bit wide bus for transferring data between blocks based on the transaction data length determined by req/resp communication.

The transaction data length matches the burst_length value of resp. If the burst_length of resp is 0, no data is transferred between blocks.

The transaction data begins at the LSB of the 512 bit bus. If the transaction data length is not a multiple of 64 bytes, invalid data is appended to the end of the remaining space in the last cycle of the transaction data.

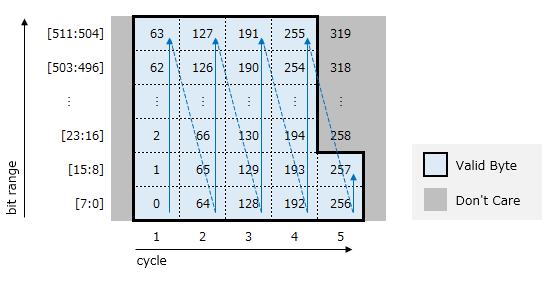

The byte order for transferring 258 bytes of 0~257 in 5 cycles is shown below.

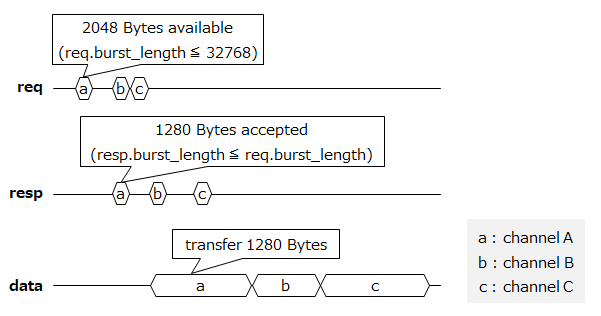

Timing

The signal timing of req/resp/data is shown below. When multiple functional channel transactions are superimposed on the same interblock data transfer interface, the channel order of req/resp/data must be in-order.

Filter Resize Function Block Specification

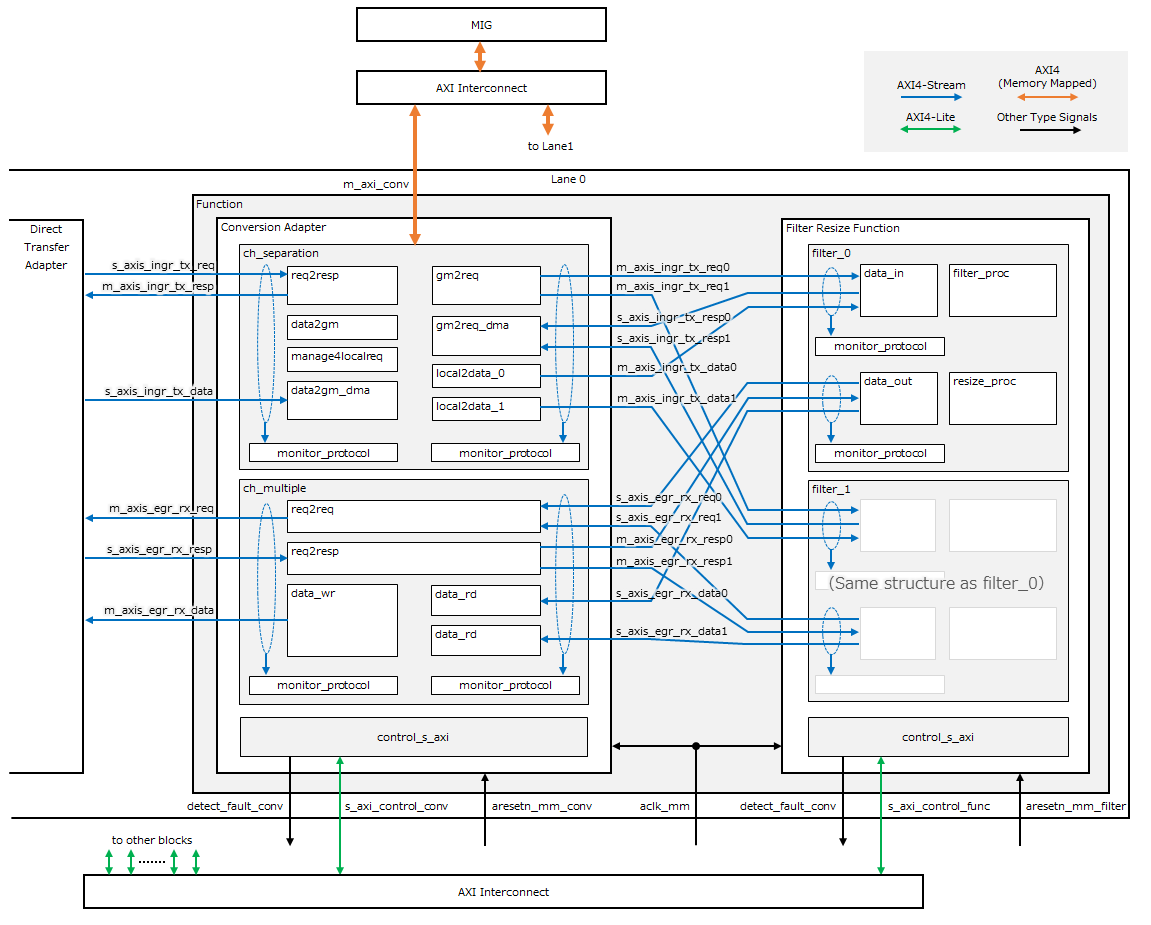

The following shows the block configuration of the Filter Resize function block implemented in the implementation sample.

Conversion Adapter

This sub-block buffers the image data corresponding to the data frame of the implementation sample and distributes the image data to two Filter Resize circuits.

Block Name	Description
ch_seperation	Receives data frames from the Direct Transfer Adapter and buffers them in the DDR. Images are transferred to Filter Resize in order after buffering is completed.
ch_multiple	Coordinates the input of image processing results from two Filter Resizes and transfers the received image processing results to the Direct Transfer Adapter.
control_s_axi	Provides a set of control registers.

Filter Resize

This sub-block performs filtering and resizing on the image data.

Block Name	Description
data_in	Receives a dataframe from the conversion adapter and inputs it to a later filter_proc.
filter_proc	Receives image data from data_in and transfers it to resize_proc with 5x5 median filtering.
resize_proc	Receives image data from filter_proc and applies resizing. Applies Bilinear as the interpolation algorithm. Transfer resizing results to data_out.
data_out	Receives image data from resize_proc and outputs it to the Conversion Adapter.

Function block register map

Conversion Adapter

Offset	Name	Type [4]	Initial Value
0x0000	control	R/W	0x00000000
0x0010	module_id	R	0x0000F1C2
0x0020	local_version	R	(Version Number)
0x0030	m_axi_ingr_frame_buffer_l	R/W	0x00000000
0x0034	m_axi_ingr_frame_buffer_h	R/W	0x00000000
0x0040	rows_in	R/W	0x00000000
0x0044	cols_in	R/W	0x00000000
0x0050	stat_sel_channel	R/W	0x00000000
0x0060	stat_ingr_rcv_data_value_l	RC	0x00000000
0x0064	stat_ingr_rcv_data_value_h	RC	0x00000000
0x0070	stat_ingr_snd_data_0_value_l	RC	0x00000000
0x0074	stat_ingr_snd_data_0_value_h	RC	0x00000000
0x0078	stat_ingr_snd_data_1_value_l	RC	0x00000000
0x007C	stat_ingr_snd_data_1_value_h	RC	0x00000000
0x0080	stat_egr_rcv_data_0_value_l	RC	0x00000000
0x0084	stat_egr_rcv_data_0_value_h	RC	0x00000000
0x0088	stat_egr_rcv_data_1_value_l	RC	0x00000000
0x008C	stat_egr_rcv_data_1_value_h	RC	0x00000000
0x0090	stat_egr_snd_data_value_l	RC	0x00000000
0x0094	stat_egr_snd_data_value_h	RC	0x00000000
0x0098	stat_ingr_rcv_frame_value	RC	0x00000000
0x00A0	stat_ingr_snd_frame_0_value	RC	0x00000000
0x00A4	stat_ingr_snd_frame_1_value	RC	0x00000000
0x00A8	stat_egr_rcv_frame_0_value	RC	0x00000000
0x00AC	stat_egr_rcv_frame_1_value	RC	0x00000000
0x00B0	stat_egr_snd_frame_value	RC	0x00000000
0x00C0	stat_ingr_frame_buffer_overflow	R/WC	0x00000000
0x00C4	stat_ingr_frame_buffer_usage	R	0x00000000
0x0100	detect_fault	R	0x00000000
0x0110	ingr_rcv_protocol_fault	R/WC	0x00000000
0x0118	ingr_rcv_protocol_fault_mask	R/W	0x00000000
0x011C	ingr_rcv_protocol_fault_force	R/W	0x00000000
0x0120	ingr_snd_protocol_fault_0	R/WC	0x00000000
0x0128	ingr_snd_protocol_fault_0_mask	R/W	0x00000000
0x012C	ingr_snd_protocol_fault_0_force	R/W	0x00000000
0x0130	ingr_snd_protocol_fault_1	R/WC	0x00000000
0x0138	ingr_snd_protocol_fault_1_mask	R/W	0x00000000
0x013C	ingr_snd_protocol_fault_1_force	R/W	0x00000000
0x0140	egr_rcv_protocol_fault_0	R/WC	0x00000000
0x0148	egr_rcv_protocol_fault_0_mask	R/W	0x00000000
0x014C	egr_rcv_protocol_fault_0_force	R/W	0x00000000
0x0150	egr_rcv_protocol_fault_1	R/WC	0x00000000
0x0158	egr_rcv_protocol_fault_1_mask	R/W	0x00000000
0x015C	egr_rcv_protocol_fault_1_force	R/W	0x00000000
0x0160	egr_snd_protocol_fault	R/WC	0x00000000
0x0168	egr_snd_protocol_fault_mask	R/W	0x00000000
0x016C	egr_snd_protocol_fault_force	R/W	0x00000000
0x0170	mem_parity_fault	R/WC	0x00000000
0x0178	mem_parity_fault_mask	R/W	0x00000000
0x017C	mem_parity_fault_force	R/W	0x00000000
0x0180	ingr_rcv_length_fault	R/WC	0x00000000
0x0188	ingr_rcv_length_fault_mask	R/W	0x00000000
0x018C	ingr_rcv_length_fault_force	R/W	0x00000000
0x0190	streamif_stall	R	0x00000000
0x0198	streamif_stall_mask	R/W	0x00000000
0x019C	streamif_stall_force	R/W	0x00000000
0x01C0	ingr_rcv_insert_protocol_fault	R/W	0x00000000
0x01C4	ingr_snd_insert_protocol_fault_0	R/W	0x00000000
0x01C8	ingr_snd_insert_protocol_fault_1	R/W	0x00000000
0x01CC	egr_rcv_insert_protocol_fault_0	R/W	0x00000000
0x01D0	egr_rcv_insert_protocol_fault_1	R/W	0x00000000
0x01D4	egr_snd_insert_protocol_fault	R/W	0x00000000
0x01D8	insert_mem_parity_fault	R/W	0x00000000

[4]

R/W: Read Write / R: Read Only / RC: Read Clear / R/WC: Read Write Clear

Filter Resize

Offset	Name	Type [5]	Initial Value
0x0000	control	R/W	0x00000000
0x0010	module_id	R	0x0000F2C2
0x0020	local_version	R	(Version Number)
0x0030	rows_in	R/W	0x00000000
0x0034	cols_in	R/W	0x00000000
0x0038	rows_out	R/W	0x00000000
0x003C	cols_out	R/W	0x00000000
0x0040	stat_sel_channel	R/W	0x00000000
0x0050	stat_ingr_rcv_data_0_value_l	RC	0x00000000
0x0054	stat_ingr_rcv_data_0_value_h	RC	0x00000000
0x0058	stat_ingr_rcv_data_1_value_l	RC	0x00000000
0x005C	stat_ingr_rcv_data_1_value_h	RC	0x00000000
0x0060	stat_egr_snd_data_0_value_l	RC	0x00000000
0x0064	stat_egr_snd_data_0_value_h	RC	0x00000000
0x0068	stat_egr_snd_data_1_value_l	RC	0x00000000
0x006C	stat_egr_snd_data_1_value_h	RC	0x00000000
0x0070	stat_ingr_rcv_frame_0_value	RC	0x00000000
0x0074	stat_ingr_rcv_frame_1_value	RC	0x00000000
0x0078	stat_egr_snd_frame_0_value	RC	0x00000000
0x007C	stat_egr_snd_frame_1_value	RC	0x00000000
0x0100	detect_fault	R	0x00000000
0x0110	ingr_rcv_protocol_fault_0	R/WC	0x00000000
0x0118	ingr_rcv_protocol_fault_0_mask	R/W	0x00000000
0x011C	ingr_rcv_protocol_fault_0_force	R/W	0x00000000
0x0120	ingr_rcv_protocol_fault_1	R/WC	0x00000000
0x0128	ingr_rcv_protocol_fault_1_mask	R/W	0x00000000
0x012C	ingr_rcv_protocol_fault_1_force	R/W	0x00000000
0x0130	egr_snd_protocol_fault_0	R/WC	0x00000000
0x0138	egr_snd_protocol_fault_0_mask	R/W	0x00000000
0x013C	egr_snd_protocol_fault_0_force	R/W	0x00000000
0x0140	egr_snd_protocol_fault_1	R/WC	0x00000000
0x0148	egr_snd_protocol_fault_1_mask	R/W	0x00000000
0x014C	egr_snd_protocol_fault_1_force	R/W	0x00000000
0x0150	streamif_stall	R	0x00000000
0x0158	streamif_stall_mask	R/W	0x00000000
0x015C	streamif_stall_force	R/W	0x00000000
0x0180	ingr_rcv_insert_protocol_fault_0	R/W	0x00000000
0x0184	ingr_rcv_insert_protocol_fault_1	R/W	0x00000000
0x0188	egr_snd_insert_protocol_fault_0	R/W	0x00000000
0x018C	egr_snd_insert_protocol_fault_1	R/W	0x00000000

[5]

R/W: Read Write / R: Read Only / RC: Read Clear / R/WC: Read Write Clear

Resource Information

A implementation sample resource report is provided as a reference.

1. CLB Logic
------------

+----------------------------+--------+-------+------------+-----------+-------+
|          Site Type         |  Used  | Fixed | Prohibited | Available | Util% |
+----------------------------+--------+-------+------------+-----------+-------+
| CLB LUTs                   | 546439 |     0 |          0 |   1728000 | 31.62 |
|   LUT as Logic             | 514191 |     0 |          0 |   1728000 | 29.76 |
|   LUT as Memory            |  32248 |     0 |          0 |    791040 |  4.08 |
|     LUT as Distributed RAM |  21292 |     0 |            |           |       |
|     LUT as Shift Register  |  10956 |     0 |            |           |       |
| CLB Registers              | 708697 |     8 |          0 |   3456000 | 20.51 |
|   Register as Flip Flop    | 708564 |     8 |          0 |   3456000 | 20.50 |
|   Register as Latch        |    128 |     0 |          0 |   3456000 | <0.01 |
|   Register as AND/OR       |      5 |     0 |          0 |   3456000 | <0.01 |
| CARRY8                     |  16506 |     0 |          0 |    216000 |  7.64 |
| F7 Muxes                   |  15776 |     0 |          0 |    864000 |  1.83 |
| F8 Muxes                   |   3797 |     0 |          0 |    432000 |  0.88 |
| F9 Muxes                   |     92 |     0 |          0 |    216000 |  0.04 |
+----------------------------+--------+-------+------------+-----------+-------+

14. SLR CLB Logic and Dedicated Block Utilization
-------------------------------------------------

+----------------------------+--------+--------+--------+-------+--------+--------+--------+--------+
|          Site Type         |  SLR0  |  SLR1  |  SLR2  |  SLR3 | SLR0 % | SLR1 % | SLR2 % | SLR3 % |
+----------------------------+--------+--------+--------+-------+--------+--------+--------+--------+
| CLB                        |  40680 |  50177 |  24476 |  6500 |  75.33 |  92.92 |  45.33 |  12.04 |
|   CLBL                     |  22119 |  27186 |  13172 |  3602 |  75.54 |  92.85 |  44.99 |  12.30 |
|   CLBM                     |  18561 |  22991 |  11304 |  2898 |  75.08 |  93.01 |  45.73 |  11.72 |
| CLB LUTs                   | 185688 | 228277 | 108015 | 24459 |  42.98 |  52.84 |  25.00 |   5.66 |
|   LUT as Logic             | 182063 | 211766 |  98446 | 21916 |  42.14 |  49.02 |  22.79 |   5.07 |
|     using O5 output only   |   1352 |   2272 |   1260 |   518 |   0.31 |   0.53 |   0.29 |   0.12 |
|     using O6 output only   | 141199 | 149601 |  55462 | 14701 |  32.68 |  34.63 |  12.84 |   3.40 |
|     using O5 and O6        |  39512 |  59893 |  41724 |  6697 |   9.15 |  13.86 |   9.66 |   1.55 |
|   LUT as Memory            |   3625 |  16511 |   9569 |  2543 |   1.83 |   8.35 |   4.84 |   1.29 |
|     LUT as Distributed RAM |   2912 |   8054 |   8450 |  1876 |   1.47 |   4.07 |   4.27 |   0.95 |
|       using O5 output only |      0 |      0 |      0 |     0 |   0.00 |   0.00 |   0.00 |   0.00 |
|       using O6 output only |    320 |   1314 |      2 |     0 |   0.16 |   0.66 |  <0.01 |   0.00 |
|       using O5 and O6      |   2592 |   6740 |   8448 |  1876 |   1.31 |   3.41 |   4.27 |   0.95 |
|     LUT as Shift Register  |    713 |   8457 |   1119 |   667 |   0.36 |   4.28 |   0.57 |   0.34 |
|       using O5 output only |      0 |      0 |      0 |     0 |   0.00 |   0.00 |   0.00 |   0.00 |
|       using O6 output only |    630 |   4530 |    986 |   632 |   0.32 |   2.29 |   0.50 |   0.32 |
|       using O5 and O6      |     83 |   3927 |    133 |    35 |   0.04 |   1.99 |   0.07 |   0.02 |
| CLB Registers              | 215945 | 335319 | 118243 | 39190 |  24.99 |  38.81 |  13.69 |   4.54 |
| CARRY8                     |   6800 |   6128 |   3520 |    58 |  12.59 |  11.35 |   6.52 |   0.11 |
| F7 Muxes                   |   8404 |   5627 |   1244 |   501 |   3.89 |   2.61 |   0.58 |   0.23 |
| F8 Muxes                   |   2109 |   1388 |    242 |    58 |   1.95 |   1.29 |   0.22 |   0.05 |
| F9 Muxes                   |      0 |     92 |      0 |     0 |   0.00 |   0.17 |   0.00 |   0.00 |
| Block RAM Tile             |    220 |    428 |    124 |  25.5 |  32.74 |  63.69 |  18.45 |   3.79 |
|   RAMB36/FIFO              |    166 |    350 |    122 |    25 |  24.70 |  52.08 |  18.15 |   3.72 |
|   RAMB18                   |    108 |    156 |      4 |     1 |   8.04 |  11.61 |   0.30 |   0.07 |
| URAM                       |      0 |     92 |      0 |     0 |   0.00 |  28.75 |   0.00 |   0.00 |
| DSPs                       |      3 |    537 |     15 |     3 |   0.10 |  17.48 |   0.49 |   0.10 |
| Unique Control Sets        |   5073 |  10444 |   2766 |  1159 |   4.70 |   9.67 |   2.56 |   1.07 |
+----------------------------+--------+--------+--------+-------+--------+--------+--------+--------+
* Note: Available Control Sets based on CLB Registers / 8

1. Utilization by Hierarchy
---------------------------

+-------------------------------+----------------------------------------+------------+------------+---------+-------+--------+--------+--------+------+------------+
|           Instance            |                  Module                | Total LUTs | Logic LUTs | LUTRAMs |  SRLs |   FFs  | RAMB36 | RAMB18 | URAM | DSP Blocks |
+-------------------------------+----------------------------------------+------------+------------+---------+-------+--------+--------+--------+------+------------+
| function_0                    |                 function_0_imp_1MVGFZK |      60739 |      59436 |     208 |  1095 |  61079 |    117 |      5 |   32 |         75 |
|   axi4l_decoupler_conv        |        design_1_axi4l_decoupler_conv_0 |          7 |          7 |       0 |     0 |      0 |      0 |      0 |    0 |          0 |
|   axi4l_decoupler_filter      |      design_1_axi4l_decoupler_filter_0 |          7 |          7 |       0 |     0 |      0 |      0 |      0 |    0 |          0 |
|   conversion_ada_0            |            design_1_conversion_ada_0_0 |      25150 |      24075 |     208 |   867 |  30289 |     43 |      3 |   32 |         21 |
|   dfx_decoupler_conv_axi_m    |    design_1_dfx_decoupler_conv_axi_m_0 |          5 |          5 |       0 |     0 |      0 |      0 |      0 |    0 |          0 |
|   dfx_decoupler_conv_axis_m   |   design_1_dfx_decoupler_conv_axis_m_0 |          9 |          9 |       0 |     0 |      0 |      0 |      0 |    0 |          0 |
|   dfx_decoupler_conv_axis_s   |   design_1_dfx_decoupler_conv_axis_s_0 |          9 |          9 |       0 |     0 |      0 |      0 |      0 |    0 |          0 |
|   dfx_decoupler_conv_fault    |    design_1_dfx_decoupler_conv_fault_0 |          1 |          1 |       0 |     0 |      0 |      0 |      0 |    0 |          0 |
|   dfx_decoupler_filter_axis_m | design_1_dfx_decoupler_filter_axis_m_0 |          6 |          6 |       0 |     0 |      0 |      0 |      0 |    0 |          0 |
|   dfx_decoupler_filter_axis_s | design_1_dfx_decoupler_filter_axis_s_0 |          6 |          6 |       0 |     0 |      0 |      0 |      0 |    0 |          0 |
|   dfx_decoupler_filter_fault  |  design_1_dfx_decoupler_filter_fault_0 |          1 |          1 |       0 |     0 |      0 |      0 |      0 |    0 |          0 |
|   filter_resize_0             |             design_1_filter_resize_0_0 |      35554 |      35326 |       0 |   228 |  30790 |     74 |      2 |    0 |         54 |
|   xlconcat_1                  |                  design_1_xlconcat_1_1 |          0 |          0 |       0 |     0 |      0 |      0 |      0 |    0 |          0 |
| function_1                    |                 function_1_imp_1I7392R |      60704 |      59401 |     208 |  1095 |  61087 |    117 |      5 |   32 |         75 |
|   axi4l_decoupler_conv        |        design_1_axi4l_decoupler_conv_1 |          7 |          7 |       0 |     0 |      0 |      0 |      0 |    0 |          0 |
|   axi4l_decoupler_filter      |      design_1_axi4l_decoupler_filter_1 |          7 |          7 |       0 |     0 |      0 |      0 |      0 |    0 |          0 |
|   conversion_ada_0            |            design_1_conversion_ada_0_1 |      25121 |      24046 |     208 |   867 |  30270 |     43 |      3 |   32 |         21 |
|   dfx_decoupler_conv_axi_m    |    design_1_dfx_decoupler_conv_axi_m_1 |          5 |          5 |       0 |     0 |      0 |      0 |      0 |    0 |          0 |
|   dfx_decoupler_conv_axis_m   |   design_1_dfx_decoupler_conv_axis_m_1 |          9 |          9 |       0 |     0 |      0 |      0 |      0 |    0 |          0 |
|   dfx_decoupler_conv_axis_s   |   design_1_dfx_decoupler_conv_axis_s_1 |          9 |          9 |       0 |     0 |      0 |      0 |      0 |    0 |          0 |
|   dfx_decoupler_conv_fault    |    design_1_dfx_decoupler_conv_fault_1 |          1 |          1 |       0 |     0 |      0 |      0 |      0 |    0 |          0 |
|   dfx_decoupler_filter_axis_m | design_1_dfx_decoupler_filter_axis_m_1 |          6 |          6 |       0 |     0 |      0 |      0 |      0 |    0 |          0 |
|   dfx_decoupler_filter_axis_s | design_1_dfx_decoupler_filter_axis_s_1 |          6 |          6 |       0 |     0 |      0 |      0 |      0 |    0 |          0 |
|   dfx_decoupler_filter_fault  |  design_1_dfx_decoupler_filter_fault_1 |          1 |          1 |       0 |     0 |      0 |      0 |      0 |    0 |          0 |
|   filter_resize_0             |             design_1_filter_resize_0_1 |      35551 |      35323 |       0 |   228 |  30817 |     74 |      2 |    0 |         54 |
|   xlconcat_1                  |                  design_1_xlconcat_1_2 |          0 |          0 |       0 |     0 |      0 |      0 |      0 |    0 |          0 |
+-------------------------------+----------------------------------------+------------+------------+---------+-------+--------+--------+--------+------+------------+
* Note: The sum of lower-level cells may be larger than their parent cells total, due to cross-hierarchy LUT combining

Design of a new function block

From now on, the root of the hardware-design repository should be $workdir/hardware-design and the module name of the new function block to be added should be myfunc.

Directory Configuration

Create a directory under $workdir/hardware-design/function/ to store the new function block.

$workdir/hardware-design/function/
+-- myfunc/
    +-- src/
    |   +-- hls/
    |   |   +-- include/
    |   |   |   +-- *.h / *.hpp ..... C/C++ header files for high-level synthesis
    |   |   +-- *.c / *.hpp ......... C/C++ source files for high-level synthesis
    |   +-- hdl/
    |   |   +-- *.v / *.sv .......... RTL source file
    |   +-- ip/
    |       +-- *.xci ............... IP generation file
    +-- script/
        +-- hls/
        |   +-- ipgen.sh ............ IP build script
        |   +-- Makefile ............ IP build makefile
        |   +-- ipgen_template.tc ... TCL script templates for IP builds
        +-- ip/
            +-- Makefile.bd_top.mk .. makefile for IP
            +-- myfunc_bd.tcl ....... TCL scripts for generating block designs
            +-- package_kernel.bd_top.tcl
                              ....... TCL script for IP

You can omit directories that are not used. For example, hls/ is not needed if you do not include high-level synthesis sources.

The scripts under script/ can be created by referring to the scripts of existing function blocks.

The important thing is Makefile.bd_top.mk, which must be configured to allow packaging of function blocks with the following command.

$ cd $workdir/hardware-design/function/myfunc/script/ip
$ make -f Makefile.bd_top.mk all

Edit Build Script

Add to your script the source code that you put in the directory to get myfunc into your Vivado project.

Add HDL Source File

Edit $workdir/hardware-design/example-design/script/impl/build_design.tcl and add the add_files command.

# Add source
add_files -norecurse { \
../../function/myfunc/src/hdl/AAA/aaa.sv \
../../function/myfunc/src/hdl/AAA/bbb.sv \
../../function/myfunc/src/hdl/BBB/ccc.sv \
../../function/myfunc/src/hdl/BBB/ddd.v \
}

# Add IP
add_files -norecurse { \
../../function/myfunc/src/ip/AAA/aaa.xci \
../../function/myfunc/src/ip/BBB/bbb.xci \
../../function/myfunc/src/ip/CCC/ccc.xci \
}

Add high-level synthesis build commands

Edit $workdir/hardware-design/example-design/script/Makefile` and add code to execute Makefile.bd_top.mk.

  CONVERSION_ADAPTOR_DIR = ../../function/filter_resize/conversion_adaptor/script/ip
- FILTER_RESIZE_DIR = ../../function/filter_resize/filter_resize/script/ip
+ MYFUNC_DIR = ../../function/myfunc/script/ip

- ifeq ($(USE_FIL), 1)
- LIST_XO += $(CONVERSION_ADAPTOR_DIR)/conversion_adaptor.xo
- LIST_XO += $(FILTER_RESIZE_DIR)/filter_resize.xo
- endif
+ LIST_XO += $(MYFUNC_DIR)/myfunc.xo

  distcleanall: distclean
    make -C $(CHAIN_CONTROL_DIR) -f Makefile.bd_top.mk clean
    make -C $(DIRECT_TRANS_ADAPTOR_DIR) -f Makefile.bd_top.mk clean
    make -C $(CONVERSION_ADAPTOR_DIR) -f Makefile.bd_top.mk clean
-   make -C $(FILTER_RESIZE_DIR) -f Makefile.bd_top.mk clean
+   make -C $(MYFUNC_DIR) -f Makefile.bd_top.mk clean

  # Building kernel
- $(FILTER_RESIZE_DIR)/%.xo:
    -   make -C $(FILTER_RESIZE_DIR) -f Makefile.bd_top.mk all
+ $(MYFUNC_DIR)/%.xo:
+   make -C $(MYFUNC_DIR) -f Makefile.bd_top.mk all

Editing Vivado Projects

Create a Vivado project of the existing configuration as the basis for the function block replacement. See the “Build Environment” section of the build instructions for the Vivado tools version.

1. Go to $workdir/hardware-design/example-design/script/ and run the project generation command.

   cd $workdir/hardware-design/example-design/script/
   make build-design


   The file project_1/ is generated under the current directory.

2. Go to project_1/ generated above and open the Vivado project.

   cd project_1
   vivado project_1.xpr

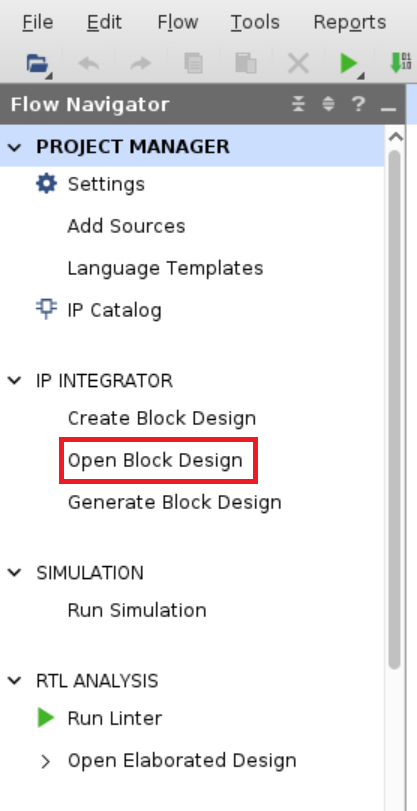

3. Open Block Design from Flow Navigator > IP INTEGRATOR > Open Block Design.



4. Delete the replacement original function block ( function_0, function_1) and Xlconcat_2 from Block Design. ※ Xlconcat_2 bundles the decouple status of function_0/1 and is not used in the implementation sample.

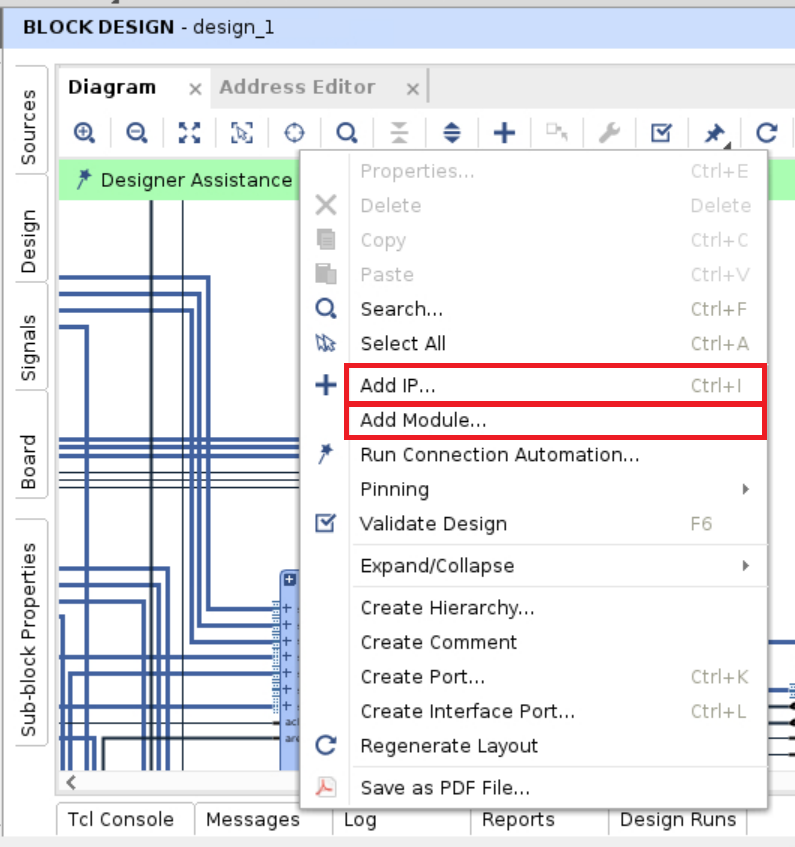

5. Add myfunc to Block Design with “Add Module” (for RTL) or “Add IP” (for high-level synthesis).



6. Prepare a connection script to connect the terminals of the added function block to the surrounding blocks. Replace function_0/1 in the script with the instance name of the newly placed function block.

   cp $workdir/hardware-design/example-design/script/impl/function_connect_conf1.tcl .
   sed -i function_connect_conf1.tcl -e "s/function_0/myfunc_0/g"
   sed -i function_connect_conf1.tcl -e "s/function_1/myfunc_1/g"


7. Select the Tcl Console tab and perform the connection using the above script.



8. Save the Block Design with Ctrl + S.

9. Export the Block Design to a TCL script for build automation. Execute the following command in the Tcl Console.

   write_bd_tcl -force tmp.tcl


10. Quit Vivado.

11. If you use tmp.tcl as it was created above, you will get an error, so fix it. Comment out or delete the following lines.

    • address configuration: assign_bd_address ***

    • validate design: validate_bd_design

12. Overwrite the modified Tcl script to $workdir/hardware-design/example-design/script/impl/bd_design_conf1.tcl.

    cp tmp.tcl ../impl/function_connect_conf1.tcl


13. Modify the address mapping to allow register access for the replaced function block. In　$workdir/hardware-design/example-design/script/impl/bd_address_conf1.csv, replace　function0/1 with the instance name/terminal name from　myfunc that you added to Block Design. If there is a change to the address map, change it to the address you want to set to myfunc.

    • Parts to be corrected

      SEG_axi4l_decoupler_conv_reg0_1,/axis2axi_bridge_0/m_axi,/function_0/axi4l_decoupler_conv/s_axi/reg0,0x24000,1K
      SEG_axi4l_decoupler_conv_reg0,/axis2axi_bridge_0/m_axi,/function_1/axi4l_decoupler_conv/s_axi/reg0,0x24400,1K
      SEG_axi4l_decoupler_filter_reg0_1,/axis2axi_bridge_0/m_axi,/function_0/axi4l_decoupler_filter/s_axi/reg0,0x25000,1K
      SEG_axi4l_decoupler_filter_reg0,/axis2axi_bridge_0/m_axi,/function_1/axi4l_decoupler_filter/s_axi/reg0,0x26000,1K


    • Parts to be deleted

      # Assignments in Address Space /function_0/axi4l_decoupler_conv/m_axi
      #
      SEG_conversion_ada_0_reg0,/function_0/axi4l_decoupler_conv/m_axi,/function_0/conversion_ada_0/s_axi_control/reg0,0x000,1K
      #
      # Assignments in Address Space /function_0/axi4l_decoupler_filter/m_axi
      #
      SEG_filter_resize_0_reg0,/function_0/axi4l_decoupler_filter/m_axi,/function_0/filter_resize_0/s_axi_control/reg0,0x000,1K
      #
      # Assignments in Address Space /function_0/conversion_ada_0/m_axi_ingr_frame_buffer
      #
      SEG_ddr4_1_C0_DDR4_ADDRESS_BLOCK,/function_0/conversion_ada_0/m_axi_ingr_frame_buffer,/ddr4_1/C0_DDR4_MEMORY_MAP/C0_DDR4_ADDRESS_BLOCK,0x400000000,16G
      #
      # Assignments in Address Space /function_1/axi4l_decoupler_conv/m_axi
      #
      SEG_conversion_ada_0_reg0,/function_1/axi4l_decoupler_conv/m_axi,/function_1/conversion_ada_0/s_axi_control/reg0,0x000,1K
      #
      # Assignments in Address Space /function_1/axi4l_decoupler_filter/m_axi
      #
      SEG_filter_resize_0_reg0,/function_1/axi4l_decoupler_filter/m_axi,/function_1/filter_resize_0/s_axi_control/reg0,0x000,1K
      #
      # Assignments in Address Space /function_1/conversion_ada_0/m_axi_ingr_frame_buffer
      #
      SEG_ddr4_1_C0_DDR4_ADDRESS_BLOCK,/function_1/conversion_ada_0/m_axi_ingr_frame_buffer,/ddr4_1/C0_DDR4_MEMORY_MAP/C0_DDR4_ADDRESS_BLOCK,0x400000000,16G


14. Run the build and generate the Bitstream.

    cd $workdir/hardware-design/example-design/script/
    make run-impl
